China Merchants Bank Urban Zero Carbon Exhibition Hall

Time: 2022

Location: Shanghai

Installed capacity: 115.68kW

Installed area: 205.7㎡

Project Characteristics:

It is the first zero-energy modular building in China. The Gain Solar Colored Glaze Black Brick series is used on the west facade of the building. The silver-white color blends seamlessly with the appearance of the building, creating an overall harmonious atmosphere. The combined use of BIPV and thermal insulation integrated panels also improves the energy-saving effect of the building. Conventional office buildings consume 70-80 degrees of electricity per square meter, while the zero-carbon exhibition hall consumes only 26 degrees of electricity per square meter, while photovoltaic power generation is at least 33 degrees per square meter. , photovoltaic green power can fully meet the energy needs of buildings and achieve zero energy consumption in the true sense. Provide 24-hour green power every day for 4kW lighting system and 10kW office (computer, air conditioning) system.

Energy saving:

A total of 115.68kW crystalline silicon photovoltaic building materials are installed in the building. The annual power generation can reach 124,450 kilowatt-hours, which is equivalent to an annual reduction of 104.08 tons of carbon dioxide, a reduction of 49.78 tons of greenhouse gases generated by coal combustion, and a reduction of 33.85 tons of dust and 3.73 tons of sulfur dioxide. Ton.

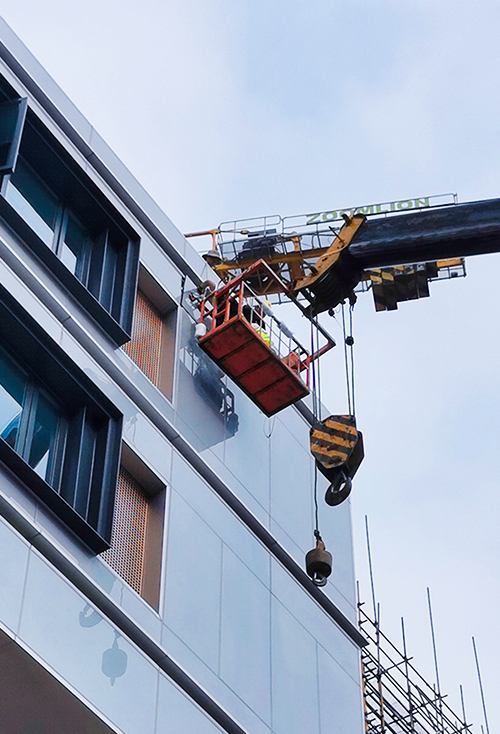

China Merchants Bank Urban Zero Carbon Exhibition Hall

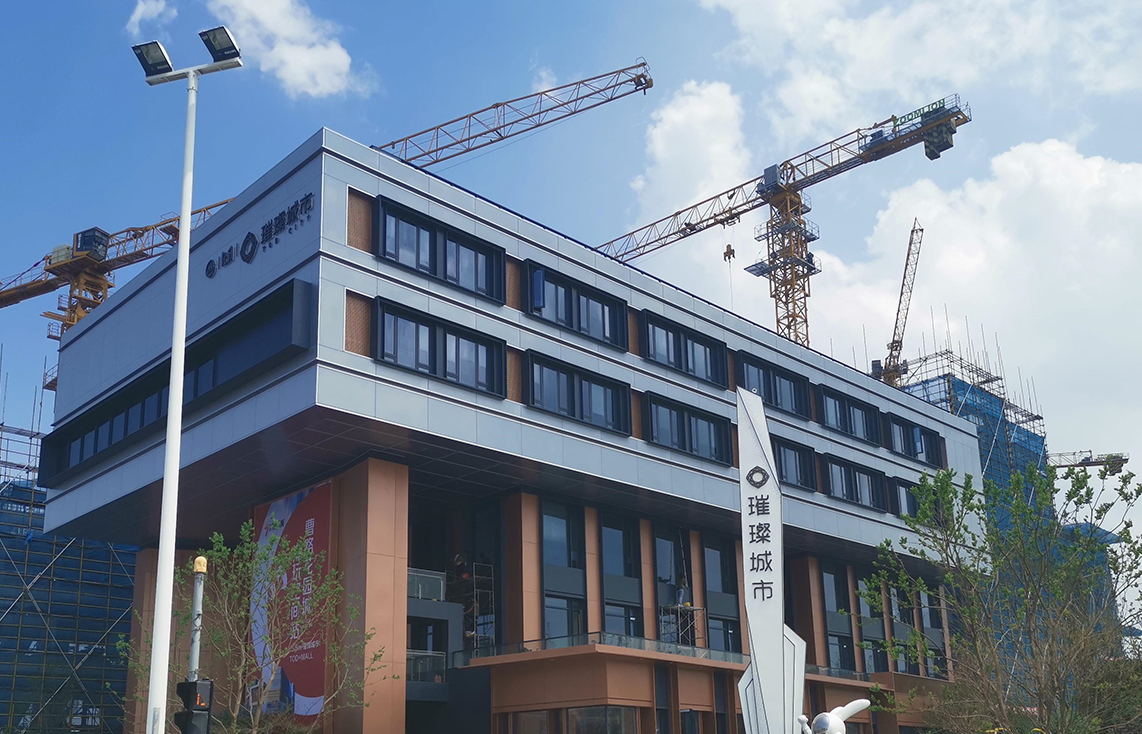

China Merchants Bank Urban Zero Carbon Exhibition Hall
