Photovoltaic tiles can replace the ordinary roof tiles, solar tiles can protect your home from the weather and other elements. As a new type of photovoltaic green building material, these photovoltaic tiles save energy and provide a more attractive aesthetic for the home than the large and bulky panels usually associated with solar energy.
Environmentally friendly building materials. The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.
Solar tile not only has the functions of waterproofing and heat insulation, solar roof tiles photovoltaic but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
Sustainability and energy independence are becoming more important than ever in the design of a home. Photovoltaic roof tile solutions can be adapted to each project according to its power generation needs. It guarantees the durability, protection and energy efficiency of the construction

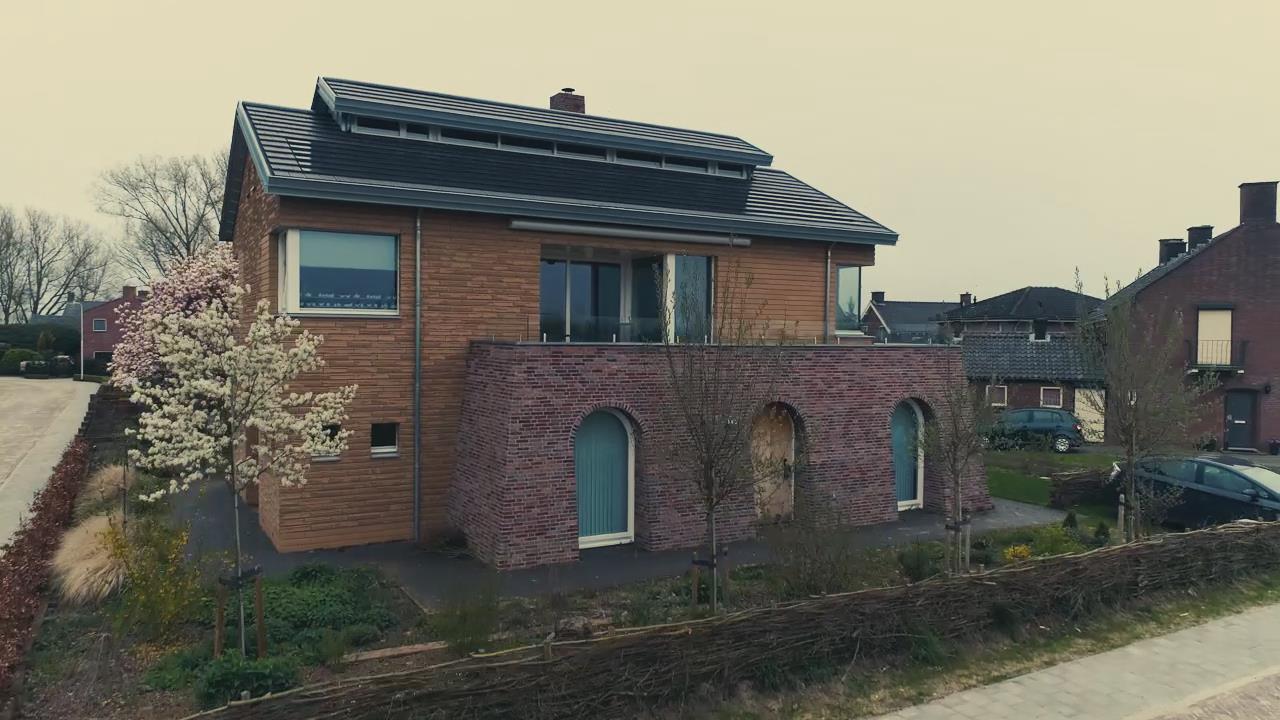

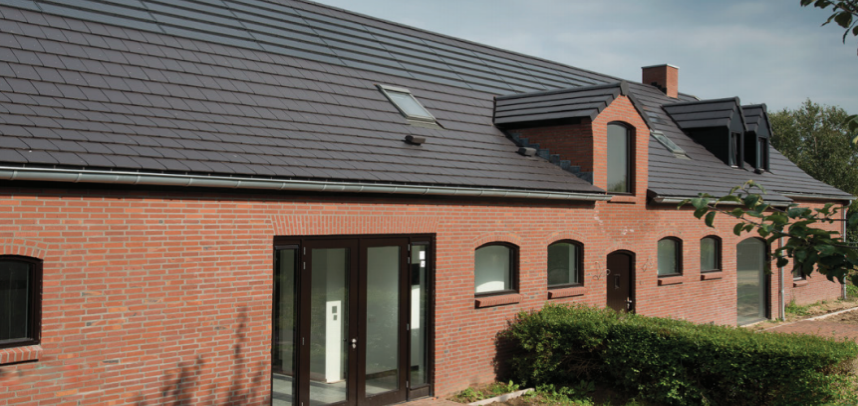

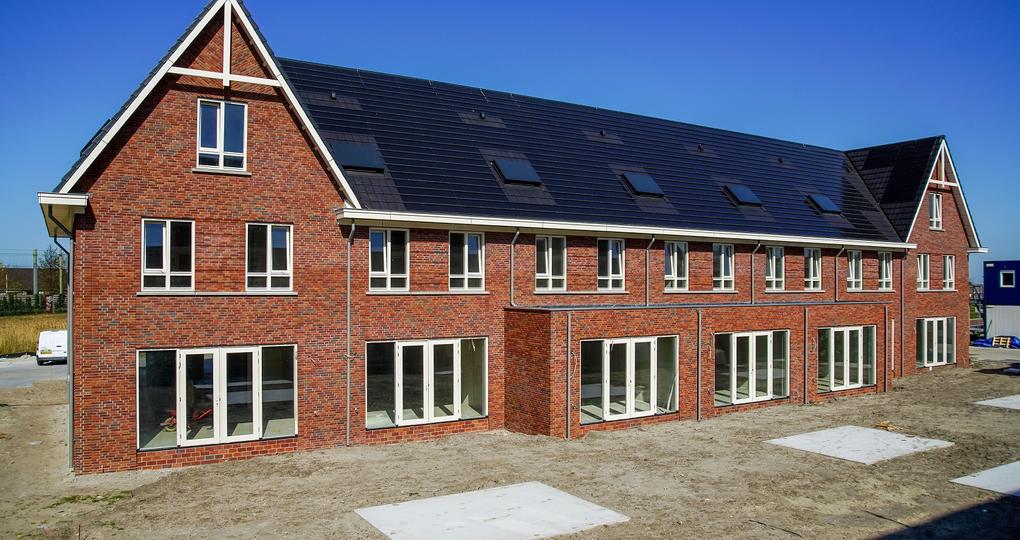

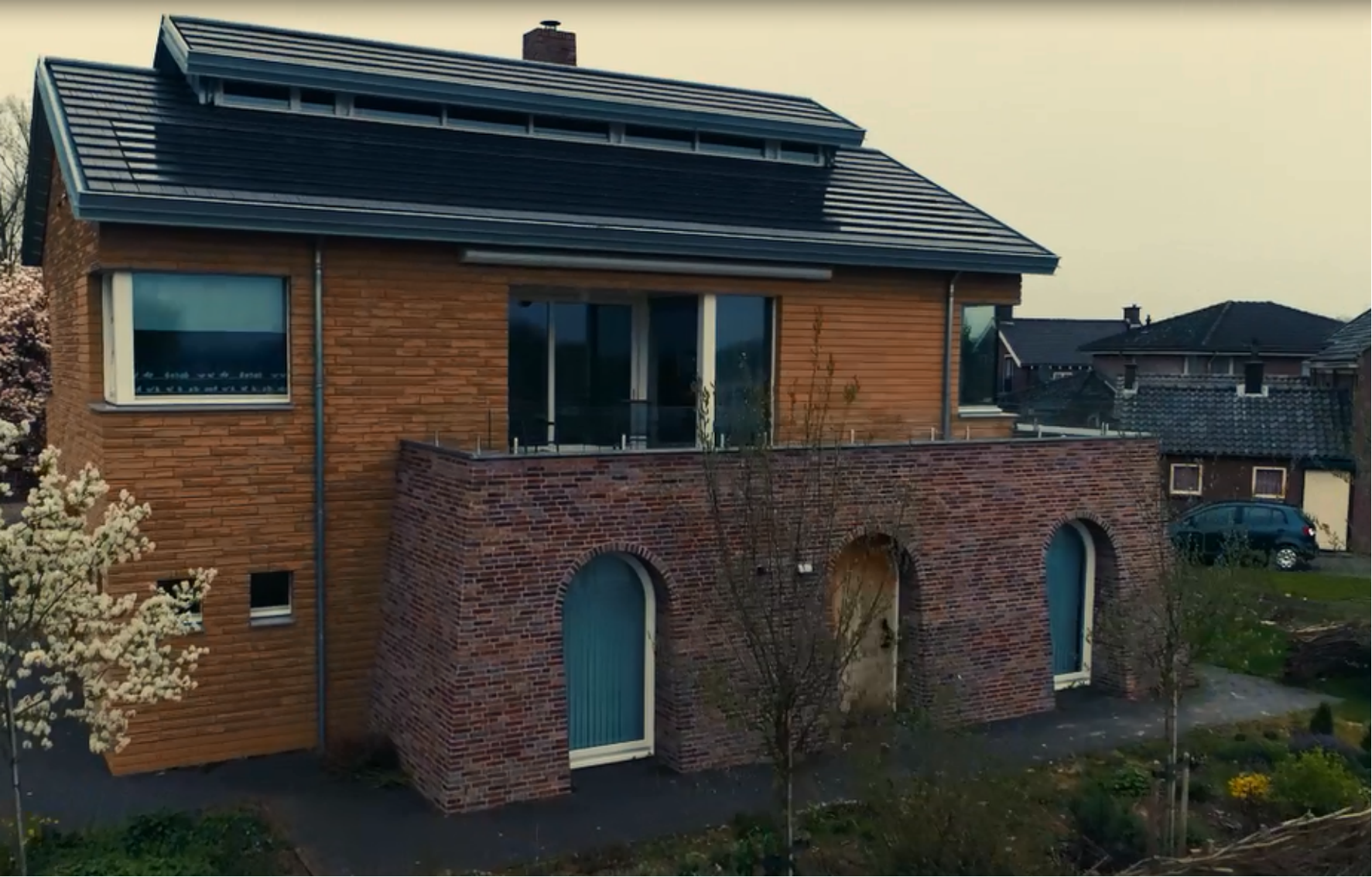

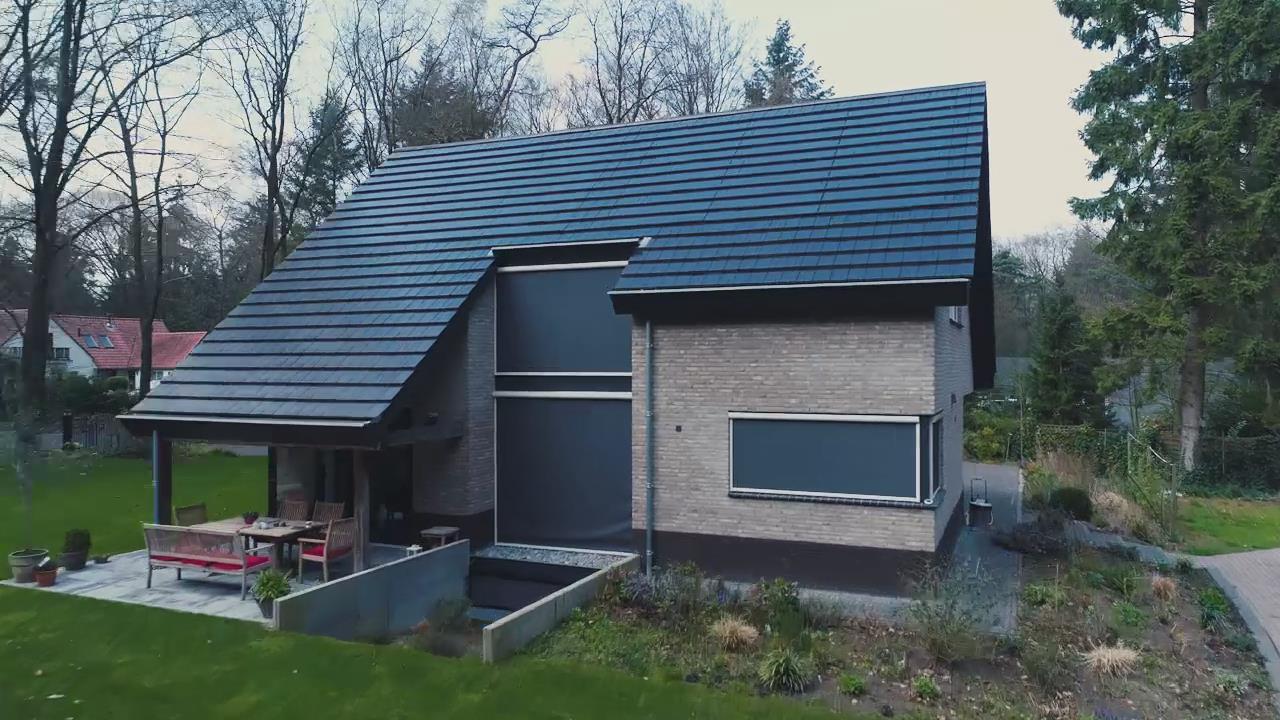

In order to combine efficiency with design, this solution is integrated into the roof (private residences mainly) without compromising on architecture and aesthetics.

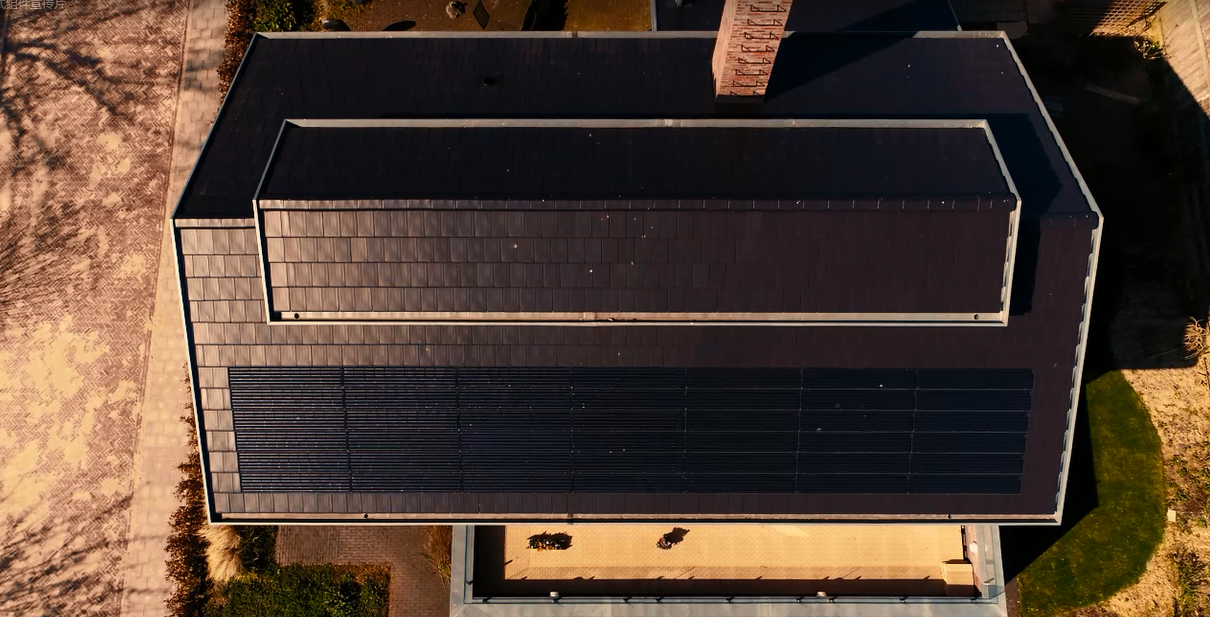

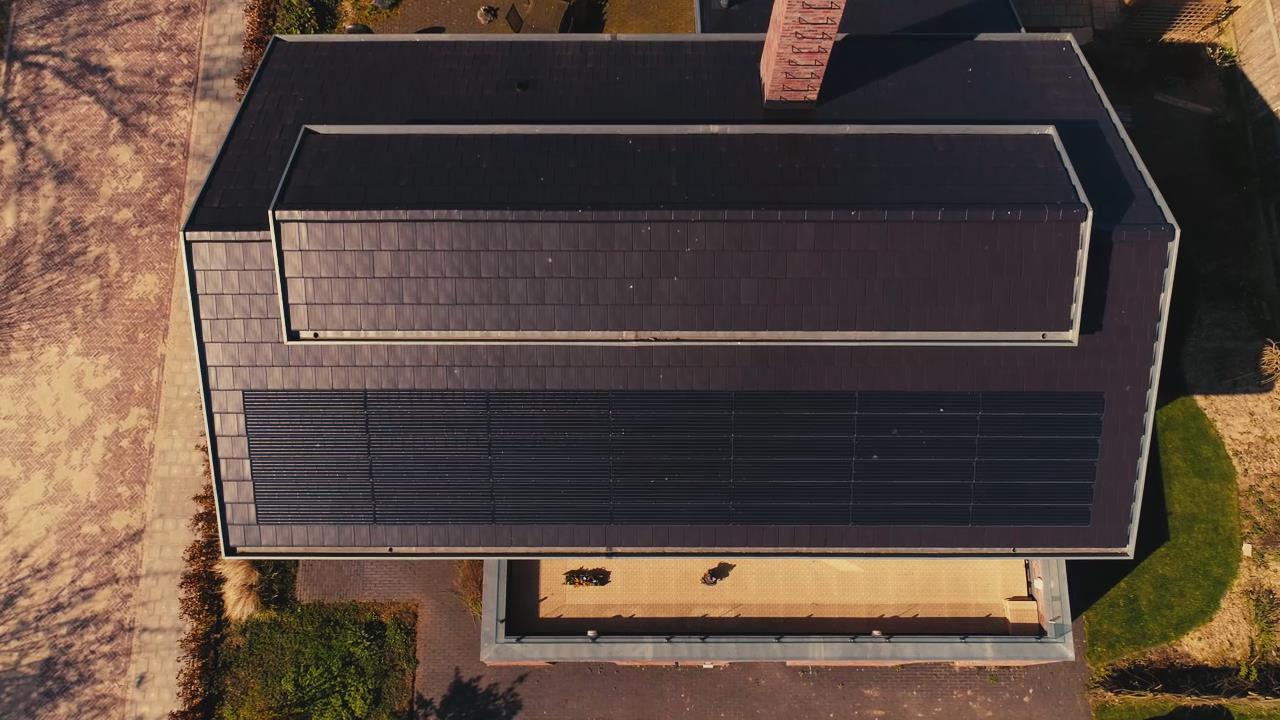

High yield and space optimization: full use of the entire roof surface.

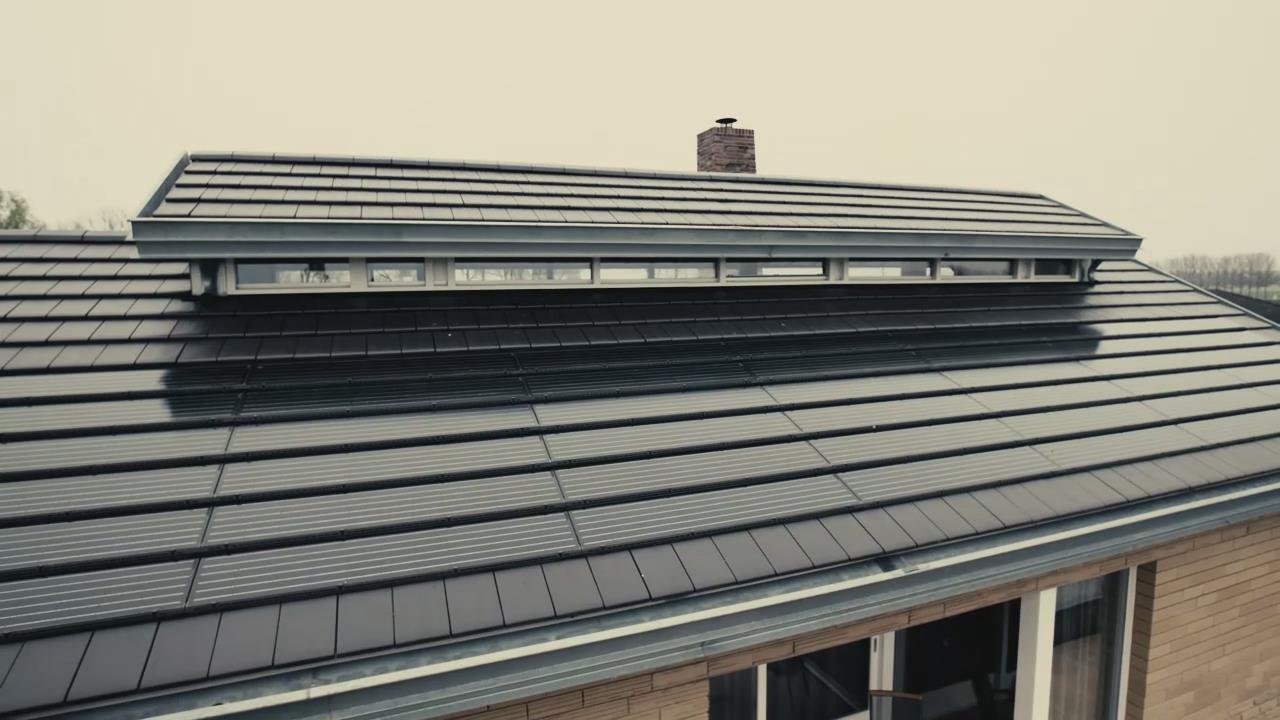

Simple installation: laid like a normal roof.
Aesthetic roof design: multiple colors available and finishes.
Durable: operating life span over 35 years.
Eco-friendly: resource-saving disposal.
Certified quality: meeting the most demanding quality standards.
With a wide range of shape, color, finish and installation patterns, the PV roof tiles also provide an additional momentum for contemporary architectural concepts.
Photovoltaic roof tiles are available as monocrystalline or polycrystalline PV cells in laminated safety glass with a variety of color options and custom dimensions, in glossy or matte finishes.
Texture color can be customized, size can be customized
innovation High-efficiency crystalline silicon cells are used in traditional tiles as new modular building materials to improve install efficiency for green buildings. | Solar tile s happen to be all most invisible. This is probably the biggest advantage that this technology has. This completely eliminates the problem of having to cover your roof with solar panels that are huge. | Solar tiles are available in a wide variety of building styles as well. |
| Electrical parameters at Standard Test Conditions (STC) | ||||
| Module type | JS XXXD-7b (XXX=Pmax) | |||
| Power outpu | Pmax | W | 75 | 70 |
| Power output tolerances | ΔPmax | W | 0-5 | |
| Module efficiency |  m | % | 15.9 | 14.8 |
| Voltage at Pmax | Vmpp | V | 7.76 | 7.61 |
| Current at Pma | Impp | A | 9.66 | 9.20 |
| Open-circuit voltage | Voc | V | 9.33 | 9.21 |
| Short-circuit current | Isc | A | 10.20 | 9.71 |
| Electrical parameters at Nominal Operating Cell Temperature (NOCT) | ||||
| Power output | Pmax | W | 57.0 | 53.2 |
| Voltage at Pmax | Vmpp | V | 7.37 | 7.23 |
| Current at Pmax | Impp | A | 7.73 | 7.36 |
| Open-circuit voltage | Voc | V | 8.85 | 8.74 |
| Short-circuit current | Isc | A | 8.21 | 7.82 |
THERMAL CHAR A C TERIS TIC S
| Nominal operating cell temperature | NOCT | °C | 45 +/- 2 |
| Temperature coefficient of P | γ | %/°C | -0.36 |
| Temperature oc | Voc | %/°C | -0.30 |
| Temperature sc | αIsc | %/°C | 0.05 |
OPER ATING C ONDITIONS
| Max. system voltage | 1500VDC |
| Max. series fuse rating | 15A |
| Operating temperature range | -40°C- 85°C |
| Max. static load, front (e.g., snow) | 5400Pa |
| Max. static load, back (e.g., wind) | 2400Pa |
| Max . hailstone impact (diameter / velocity) | 25mm / 23m/s |
C ONS TRUC TION MATERIAL S
| Glass (material / thickness) | low-iron tempered glass / 3.2mm+3.2mm |
| Cell (quantity / material / dimensions ) | 14 /Mono / 158.75mm*158.75mm |
| Encapsulating material | EVA |
| Junction box (protection degree) | ≥IP67 |
| Cable (length / cross-sectional area) | 800mm / 4mm² / Also can be Customized |
| Plug connector (type / protection degree) | MC4 / IP67 |
