Nov. 17, 2025
Gain Solar integrates clean energy generation into modern architecture through advanced BIPV façade systems. By combining aesthetics, safety, and performance, our façade solutions transform building envelopes into active, power-generating assets—delivering long-term energy benefits and sustainable value without compromising architectural design.
Whether for commercial landmarks, public buildings, or green-certified developments, Gain Solar’s façade systems offer fire-rated safety, superior weatherproofing, and seamless integration with building structures and aesthetics.
BIPV façades redefine how buildings interact with light, heat, and the environment. They merge renewable energy with architectural creativity, enabling façades that are functional, efficient, and visually distinctive.
Architectural integration: Replace conventional cladding with solar-active glass or panels that blend into the building design.
Energy generation: Convert façades into sustainable power sources, reducing operating costs and carbon emissions.
Green certification: Contribute to LEED, BREEAM, or national green building credits with documented EPDs and energy data.
Fire and weather performance: Achieve A1/A2 fire ratings, with high wind resistance, watertightness, and acoustic insulation.
Corporate headquarters and civic landmarks
Commercial complexes and retail façades
Transport terminals, airports, and stations
Academic and public institutions aiming for net-zero operation
Gain Solar’s façade systems are engineered as complete, modular solutions. Every component—from solar glass to subframe—is designed for durability, safety, and architectural flexibility.
Colored BIPV Glass-Glass Modules
Our colored G2G modules combine architectural beauty and electrical performance, offering:
Custom colors, gradient or printed patterns, and consistent tone control
Variable transparency levels for daylight balance
Surface treatment options (AR coating, matte, or glossy finish)
Long-term color stability and UV resistance

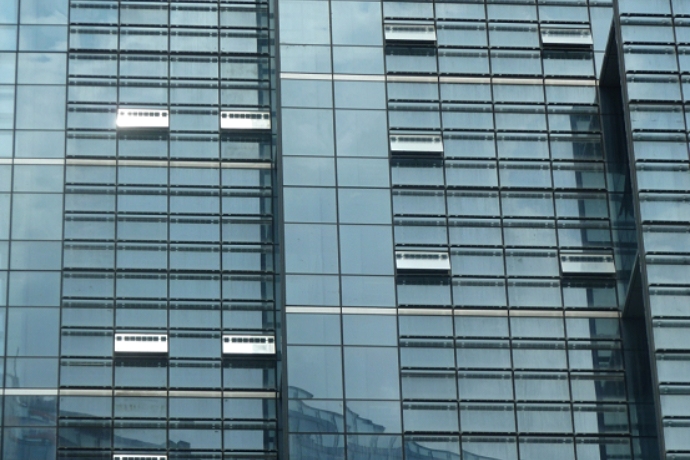

Semi-Transparent and Fully Transparent Modules
Developed for curtain walls, atriums, and skylight façades:
Selectable light transmittance (10–40%) for optimal daylight comfort
Low-glare solar glass with improved visual performance
Optimized spacing between solar cells for tailored appearance and power output
Dual-Glass BIPV Modules (HJT / TOPCon Compatible)
Latest-generation solar cells with low degradation and high efficiency
Dual-glass structure providing enhanced mechanical strength and PID resistance
Optional bifacial design to harness reflected light and boost yield
Substructure and Mounting Systems
Gain Solar provides fully compatible aluminum alloy and stainless-steel framing systems, ensuring:
Precise load transfer and wind-pressure performance
Corrosion protection, thermal isolation, and flexible fixing details
Seamless integration with point-supported or linear systems
Fire-Rated Assemblies (A1 / A2 Class)
Safety is fundamental. Our façade assemblies meet EN and GB fire safety standards, using:
Non-combustible glass laminates and fire-retardant encapsulants
Sealed compartment joints and horizontal fire barriers
Certified test reports from accredited laboratories
Gain Solar’s façade systems are rigorously tested to guarantee long-term reliability under demanding environments.
Structural and Physical Performance
Wind load resistance up to ±4.5 kPa
Air permeability Class A4, watertightness Class R7
Thermal insulation and soundproofing up to 38 dB
Optional double-sealed joints for enhanced weather protection
Certified under IEC 61215 / IEC 61730 for module safety and durability
Full insulation and grounding schemes compliant with IEC 60364
Integrated DC isolation and fire-safe rapid shutdown systems
Comprehensive UV, salt-mist, humidity-freeze, and mechanical load tests
Long-term color and output stability under real-climate simulation
Quality management certified to ISO 9001 / 14001 / 45001
Each system is supported by test reports, certification files, and performance guarantees—ensuring compliance during design review and construction approval phases.
A successful BIPV façade starts with proper design coordination between architects, façade consultants, and engineers. Gain Solar provides end-to-end support, from concept to installation.
Key Design Inputs:
Building orientation and shading conditions
Target color and transparency ratio
Regional solar irradiance and ambient climate
Electrical connection layout and inverter selection
Selection Workflow:
Define architectural intent (appearance, pattern, transparency)
Choose structural system (point-supported, linear, hidden frame)
Determine electrical configuration and cable routing
Verify thermal expansion joints and waterproofing details
Review maintenance and replacement access
Gain Solar’s façade systems are designed for safe installation, easy maintenance, and long-term durability.
Structural Connections:
Flexible options for point-fixing, clamping, or concealed frame mounting
Integrated thermal breaks and drainage channels
Stainless-steel anchors and adjustable subframes for tolerance absorption
Waterproofing and Drainage:
Multi-seal silicone joints with UV-resistant gaskets
Pressure-equalized cavity design to prevent leakage
Drip edges and open-joint drainage strategy for vertical façades
Maintenance and Accessibility:
Replaceable panel modules without disturbing adjacent panels
Integrated safety hooks for cleaning and inspection
Walkway and cradle compatibility for high-rise façades
Gain Solar provides detailed CAD drawings and BIM files covering all major joint configurations, from vertical mullion connections to corner treatments and roof interfaces.
BIPV façades combine architectural beauty with reliable electrical functionality. Gain Solar’s engineering ensures both.
System Configuration:
Series-parallel string connections optimized for façade orientation
Overcurrent and surge protection in accordance with IEC 61643
Grounding and equipotential bonding integrated within the substructure
Inverter and Monitoring Solutions:
Compatible with micro, string, or centralized inverters
Real-time monitoring for energy yield, temperature, and fault detection
Optional module-level monitoring for critical façades
Grid Connection and Documentation:
Standardized electrical single-line diagrams and layout drawings
Compliance with utility interconnection requirements
Support for on-grid and hybrid energy systems with storage integration
Operation and Maintenance:
Scheduled visual inspections and electrical checks
Low-maintenance coatings for self-cleaning performance
Remote diagnostics and fault alarms via Gain Solar’s monitoring platform
Gain Solar delivers end-to-end BIPV façade solutions—from architectural concept to operational monitoring.
Feasibility studies, daylighting simulations, and energy yield analysis
Architectural visualization and performance assessment within 48 hours
2. Structural & Electrical Engineering (BIM Integration)
Detailed load analysis and connection design
Waterproofing optimization and electrical schematics
Revit-based BIM libraries for coordination with façade consultants
3. Installation & Commissioning
Full EPC collaboration and on-site technical guidance
Quality assurance during module mounting and electrical connection
Grid-connection support and acceptance documentation
4. Operation & Maintenance
Remote monitoring of energy yield and module status
Scheduled cleaning and maintenance programs
Long-term warranty and performance assurance
5. Customization & Laboratory Testing
Prototype development for color, pattern, or transparency verification
Mechanical, fire, and weathering tests conducted in accredited labs
Fast sample turnaround and detailed test reporting
1. How does a BIPV façade differ from a conventional solar panel?
BIPV modules are structural building materials, replacing glass or cladding elements. They serve both as the building envelope and a power generator, offering integrated design and weatherproofing without external racks.
2. Do colored or semi-transparent modules affect power generation?
Yes. Colored or patterned glass slightly reduces power output, but Gain Solar optimizes cell spacing and coating to balance aesthetics and efficiency for each project.
3. How is A1/A2 fire performance achieved?
Through the use of non-combustible glass laminates, mineral interlayers, and fire barriers within the substructure. Each assembly is verified through full-scale fire tests.
4. Can BIPV façades be maintained or replaced easily?
Yes. Gain Solar’s systems allow modular replacement without dismantling adjacent panels, ensuring maintenance-friendly façades.
5. What is the typical warranty period?
Gain Solar provides 25 years of power output warranty and 10–15 years of product and installation warranty, depending on project specifications.
Gain Solar’s BIPV façade solutions redefine architectural envelopes—turning passive surfaces into active, sustainable, and aesthetic energy systems.
With certified fire safety, proven durability, and full-lifecycle engineering support, we help architects and developers achieve net-zero buildings that inspire and perform.
